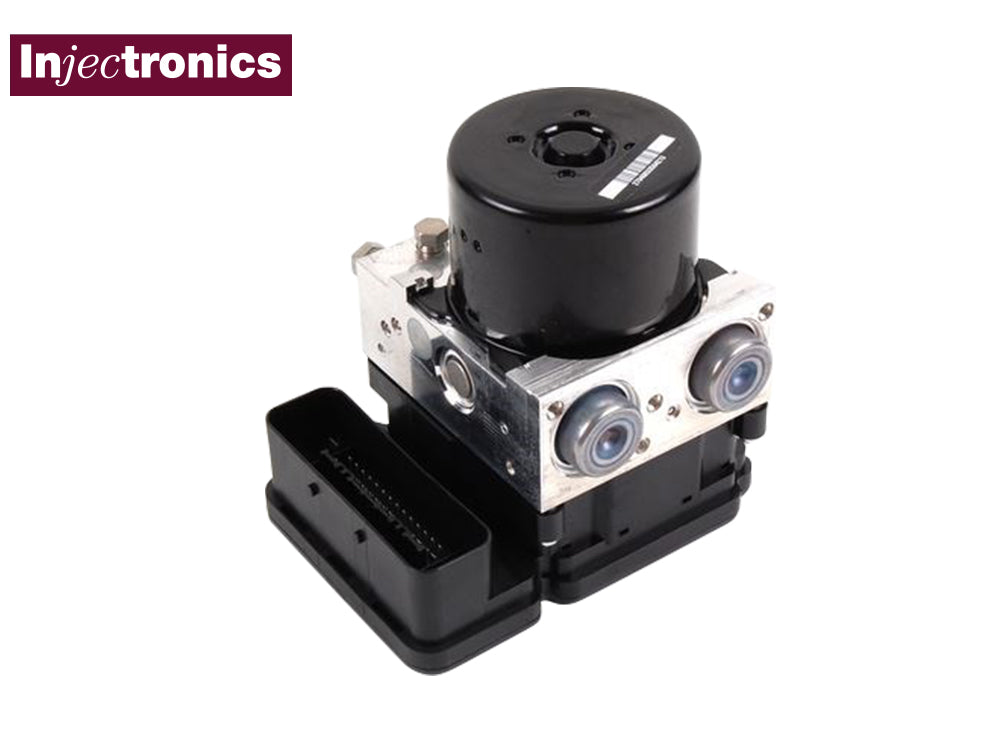

Mazda MK61 ABS Module/Pump COMPLETE Repair Service

Repair Code: ABSMAZCREP

1 1
Applications
  • Mazda 3 BL - LFDE I4 16V DOHC VVT (2009-2014)
  • Mazda 3 BL - L3 I4 16V DOHC VVT (2009-2014)
  • Mazda 3 BL - L5 I4 16V DOHC VVT (2009-2014)
  • Mazda 3 BL - PE-VPS I4 16V DOHC VVT (2011-2014)
  • Mazda 3 BL Diesel - R2 I4 16V DOHC VVT (2009-2014)
Part Numbers
  • 10096101103
  • 10061932611
  • 10096101153
  • 10061931921
  • A426G
  • 09W265
  • 8V612C405AF
  • 10096101113
  • 10021204244
  • ATE
  • MK61
  • 06210961093
  • 06261337341
  • 06210218974
  • BFB4437AZB
  • 11W041
  • 8V612C405AG
  • 8V612C405AGE
  • 10021204584
  • 000404961E2
Critical Information
  • Injectronics can repair these units for the common faults listed, this includes repairs to the ABS Module & also the Hydraulic Pump Motor
  • This service is for the repair of the COMPLETE unit which inlcudes Module and Pump Motor Repair to rectify all the faults listed
  • For the repair of the PUMP MOTOR ONLY please refer to repair part number ABSMAZREP
  • Before removing unit from the vehicle, check and record all fault codes.  Supply these and any other diagnostic information when sending unit to Injectronics.
  • Before removing pipes, clean all dust / grit off ABS module and pipes.
  • When pipes have been removed, seal all holes in ABS hydraulic block to ensure no dirt ingress.
  • ABS module must be left attached to hydraulic block and motor.
  • Pack unit very well to avoid damage during transportation.
  • PLEASE REMOVE ANY MOUNTING BRACKETS FROM UNIT BEFORE SENDING IN. UNITS SENT WITH MOUNTING BRACKETS WILL INCUR EXTRA FREIGHT CHARGES
