PROMPT REPAIR SERVICE

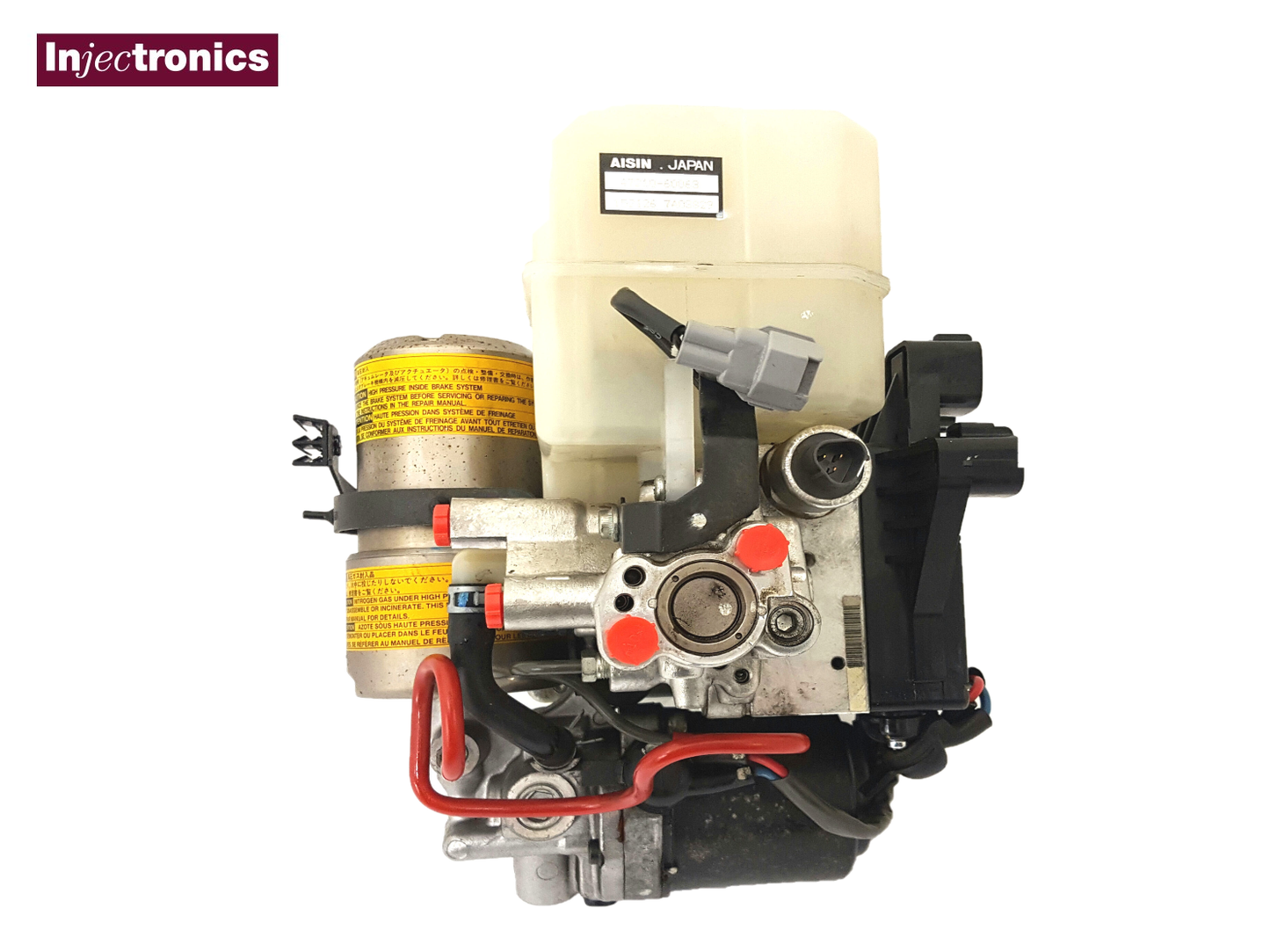

Lexus GS / SC Hydraulic brake booster (HBB)

Repair Code: ABSAIS2REP

1 1
Applications
  • Lexus GS300 JZS147R 3.0L 1995-2004
  • Lexus GS300 JZS160R 3.0L 1997-2005
  • Lexus GS300 JZS161 3.0L 1997-2004
  • Lexus SC430 UZZ40R 4.3L 2001-2010
  • Toyota Aristo JZS161R 3.0L 1997-2004
  • Toyota Aristo JZS160R 3.0L 1997-2005
Part Numbers
  • 4705030030
  • 47050-33030
  • 4705030140
  • 47050-30140
  • 4705030150
  • 4705030152
  • 47050-30152
  • 4705030210
  • 47050-30210
  • 4705030211
  • 47050-30211
  • 4705030230
  • 47050-30230
  • 47505-30150
  • 47210-30230
Critical Information
  • This is a test and repair service of the customers own unit
  • NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed in the "Common Faults" tab
  • Before removing unit from the vehicle, check and record all fault codes.  Supply these and any other diagnostic information when sending unit to Injectronics.
  • Before removing pipes, clean all dust / grit off HBB/ABS unit and pipes.



    DRAIN ALL BRAKE FLUID FROM RESERVOIR & SEAL ALL FLUID HOLES IN HYDRAULIC BLOCK TO ENSURE NO DIRT INGRESS.   (ref image below)





    • To avoid any damage during transportation, we recommend sealing the unit in a strong plastic wrap, with bubble wrap or similiar and in a solid box.(ref image below)
    • Followed by packing the sealed box in a second box to reinforce it.



    Click here for important re-installation information
