PROMPT REPAIR SERVICE

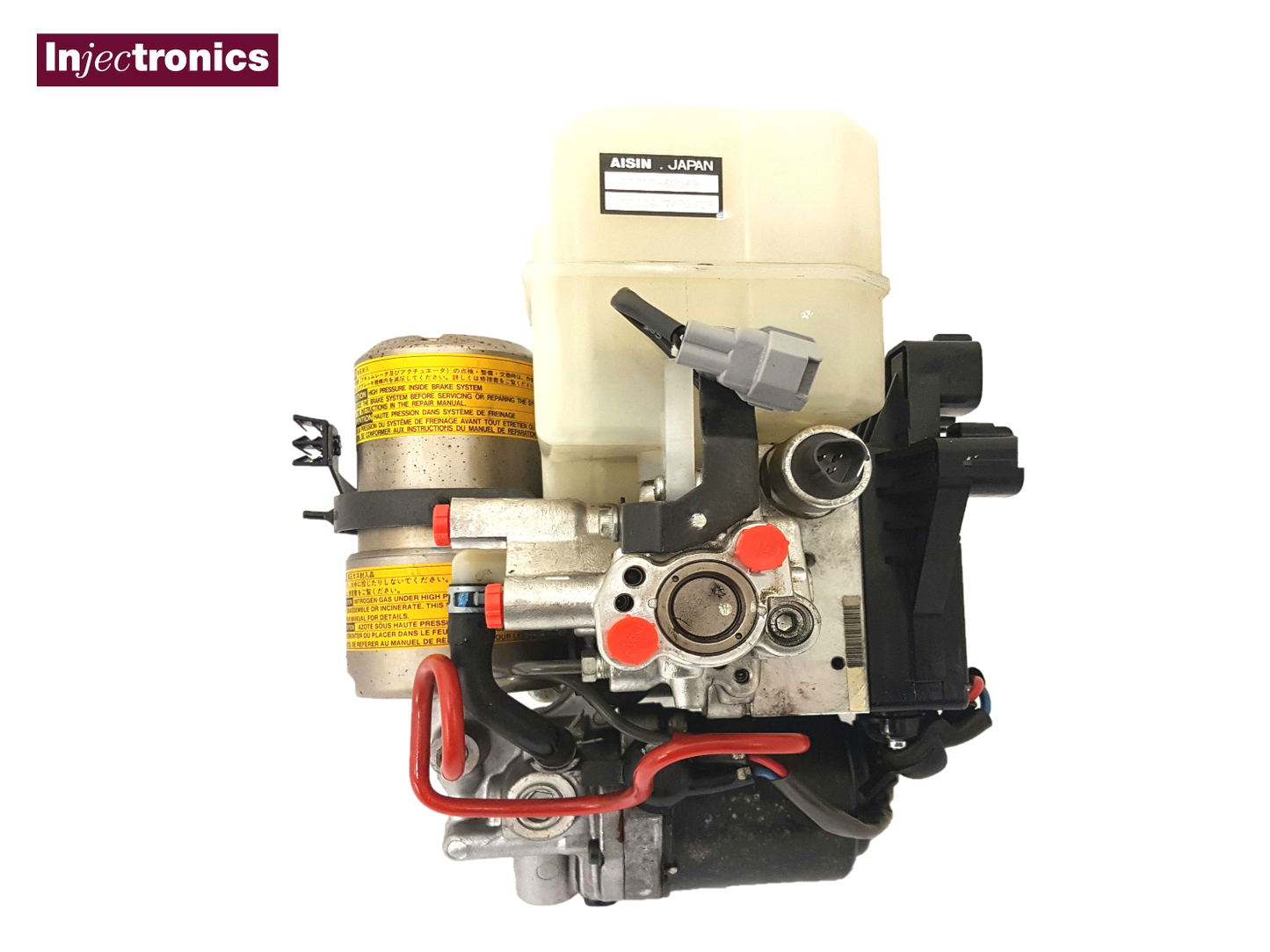

Toyota Prado ABS / Hydraulic Brake Booster (HBB)

Repair Code: ABSADVREP

1 1
Applications
  • Toyota Landcruiser Prado RZJ120R 2.7L (2002-2004)
  • Toyota Landcruiser Prado VZJ95R 3.4 Lt (1999-2003)
  • Toyota Landcruiser Prado GRJ120R 4.0L (2003-2009)
  • Toyota Landcruiser Prado GRJ121R 4.0L (2005-2009)
  • Toyota Landcruiser Prado KDJ125R 3.0L (2002-2005)
  • Toyota Landcruiser Prado KZJ120R 3.0L (2003-2007)
Part Numbers
  • 8954160061
  • 11160061265
  • 4721060120
  • 1116DD61265
  • 4705060091
  • 4721060052
  • 47210-60121
  • 4721060121
  • 0820296003312
Critical Information
  • This is a test and repair service of the customers own unit
  • NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed in the "Common Faults" tab
  • Before removing unit from the vehicle, check and record all fault codes.  Supply these and any other diagnostic information when sending unit to Injectronics.
  • Before removing pipes, clean all dust / grit off HBB/ABS unit and pipes.



    DRAIN ALL BRAKE FLUID FROM RESERVOIR & SEAL ALL FLUID HOLES IN HYDRAULIC BLOCK TO ENSURE NO DIRT INGRESS.   (ref image below)





    • To avoid any damage during transportation, we recommend sealing the unit in a strong plastic wrap, with bubble wrap or similiar and in a solid box.(ref image below)
    • Followed by packing the sealed box in a second box to reinforce it.



    Click here for important re-installation information
